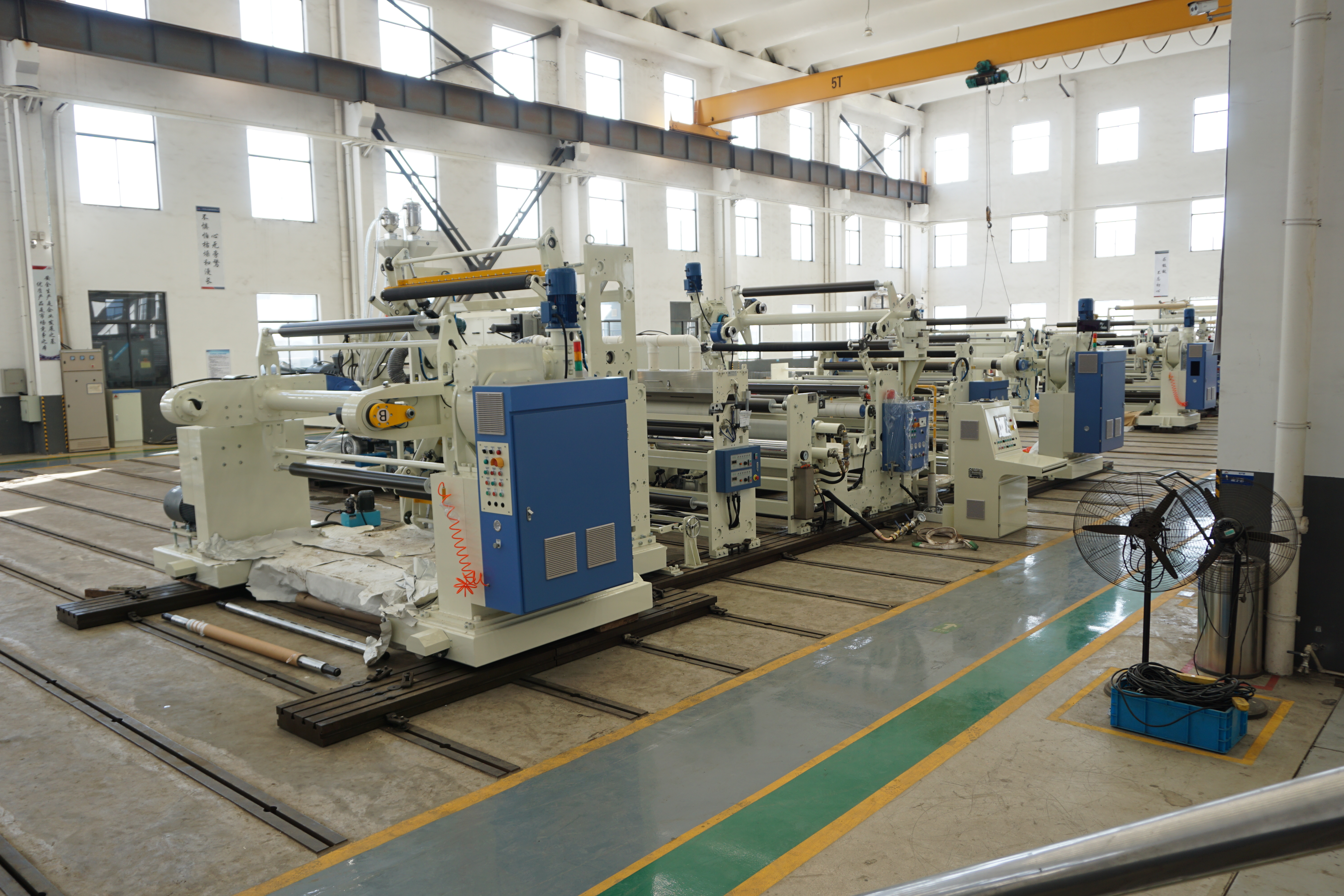

EVA Resin Single Sided Paper Laminating Machine Full Computer PLC Control

Brand Name : LAIYI

Model Number : LY-ASRP100-1400

Certification : CE , ISO9001

Place of Origin : Changzhou, China

MOQ : 1set

Price : $90,000--$450,000/set

Payment Terms : T/T, , L/C

Supply Ability : 20sets/month

Delivery Time : 5 months

Packaging Details : seaworthy packing

Machine model : LY-ASRP100-1400

Type : Laminting machine

Die model : T-die（Brand b）

Voltage : 380V 3PH 50HZ

Basic material : Paper(35-250gsm)

Resins : LDPE/LLDPE/PP/EVA

Controlling system : Full computer (PLC Control)

Length of machine : L*W*H=19.2/13.2*(9.5-12)*4.5m

Warranty : One year

Afer sales service : Engineers availble to service machinery overseas

Life time : More than 10 years

Color : White and Blue

Machinery speed : 350mtr/min

Production speed : 300mtr/min

Corona brand : Sherman

Contact Now

  • Release Paper Extrusion Laminating Machine
  • The MainTechnical Parameter of Release Paper Extrusion Laminating Machine:
Technical Parameters:
Machine LY-ASRP100-1200 LY-ASRP100-1400 LY-ASRP100-1700
Machine width 1200MM 1400MM 1700MM
Effective width Max1100MM Max1300mm Max1600mm
Machine Speed 300mtr/min 300mtr/min 300mtr/min
Screw diameter LD-100MM LD-100MM LD-100MM
Extruder output 400kg/h 400kg/h 400kg/h
Used Resins LDPE/LLDPE/PP/EVA LDPE/LLDPE/PP/EVA LDPE/LLDPE/PP/EVA
Coating Thickness 8-45um 8-45um 8-45um

Rewinder/

Unwinder Dia

Ø1200MM

Ø1200MM

Ø1200MM
Basic material Paper(35-350g/㎡ Paper(35-350g/㎡ Paper(35-350g/㎡
  • Two original paper rolls can be installed at the same time on the shaftless unwinder.
  • Auto-splicing is controlled by computer and can be done without stopping the line.
  • Web-guide device ensures that the paper/paper board passes uniformly and neatly.
  • Bead cutter for edge trimming.
  • Corona treatment on the surface of paper is to increase the peeling strength of PE and paper.
  • Rewinder consists of rewinding stand, tension control system, splicing device and towing device.
  • Tension control system is to ensure the constant tension of rewinding.

Corona Brand: Sherman

​Struction and characteristics:

①The pre-treatment includes corona treatment and static elimination on the surface of base materials.

②Corona treatment will stop when production line speed below 20m/min and automatically starts when speed above 20m/min.

③The corona machine is equipped with work condition indicating lamp,oil-immersed high-frequency transformer, electric digital meter reading output power and adjustable low-speed interlock. It will be warning on overheat, hyper-charge, breakdown and corona lost, and works with high-efficiency and low-consumption.

EVA Resin Single Sided Paper Laminating Machine Full Computer PLC Control

Double station unwinder of Paper Extrusion Laminating Machine:

  • It applies to multiple materials and has a wide range of us.
  • It can automatically change rolls without stopping machine or reduce speed.
  • It has one-button and no-button type operation, is simple and conveniet.
  • It occupies small area, can save the production spaces.

EVA Resin Single Sided Paper Laminating Machine Full Computer PLC Control

EVA Resin Single Sided Paper Laminating Machine Full Computer PLC Control
